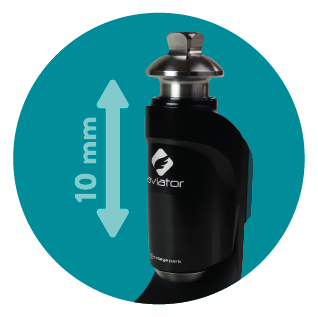

WALKING ON AIR

The Aviator allows for up to 10mm of vertical shock absorption, which can reduce impact and pressure on the body. Its vertical compliance does not affect function during normal use.

MATERIAL FUSION

Building upon the success of the popular Voyager and pediatric Scout feet, the Aviator uses material fusion to maximize function. The upper spring is composed of College Park’s Intelliweave composite technology. These fibers are woven by hand in a 3D pattern for flexibility and strength. The carbon fiber base spring enhances movement by providing a dynamic response and increased energy return. Together, these springs also help the Aviator achieve excellent inversion and eversion!

GO WITH THE FLOW

As a company based in Michigan, College Park is surrounded by fresh water. Patients can now enjoy showers or weekends exploring the many rivers and Great Lakes. The Aviator was created to function properly in fresh water—even after submersion.

Skip to the beginning of the images gallery

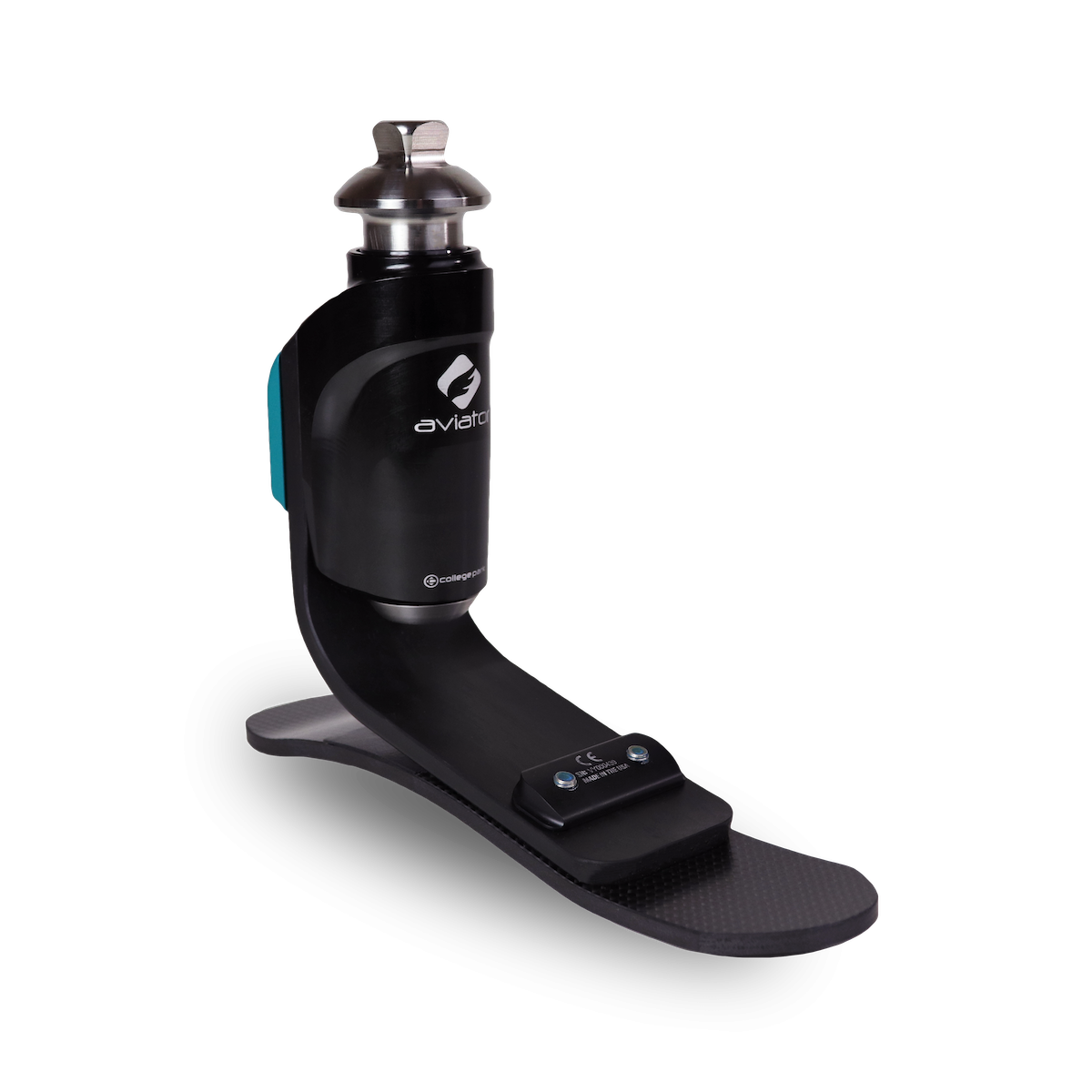

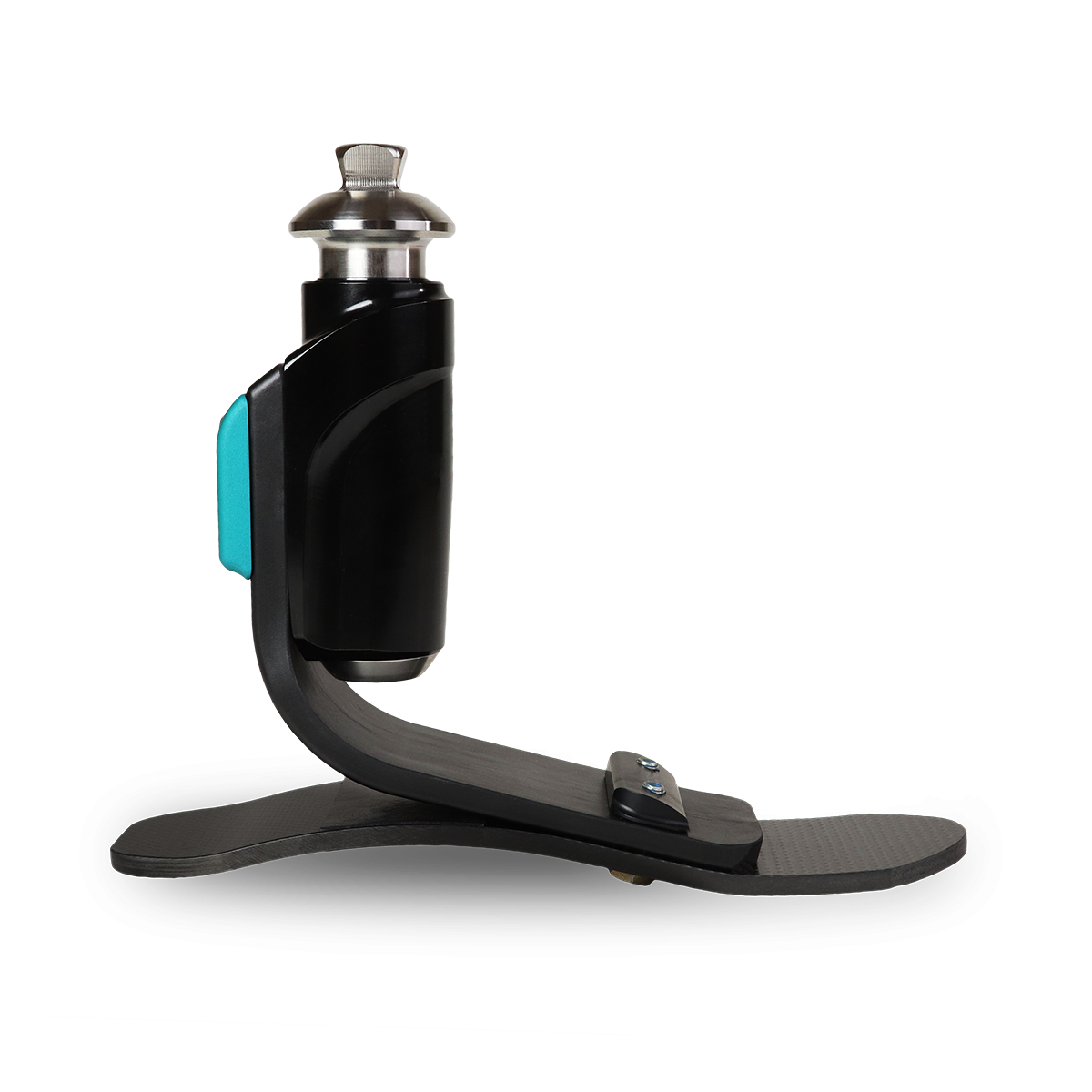

Soar through life with the Aviator.

This new, lightweight foot is designed to provide high energy return, comfort, and vertical shock absorption in every step. Combining flexible Intelliweave® composites with dynamic carbon fiber, the sleek Aviator uses a hybrid material approach in its springs. These features offer superior range of motion to accommodate a wide range of activities and users. When life gets turbulent, the Aviator can help you stay the course.

*430mm standard stainless steel. Kits must be ordered directly from College Park. US and Canada only.
**Direct US/Canada orders only. This offer can be combined with existing discounts, excluding knee/foot kits.

Suggested L Codes : L5987 PDAC APPROVED

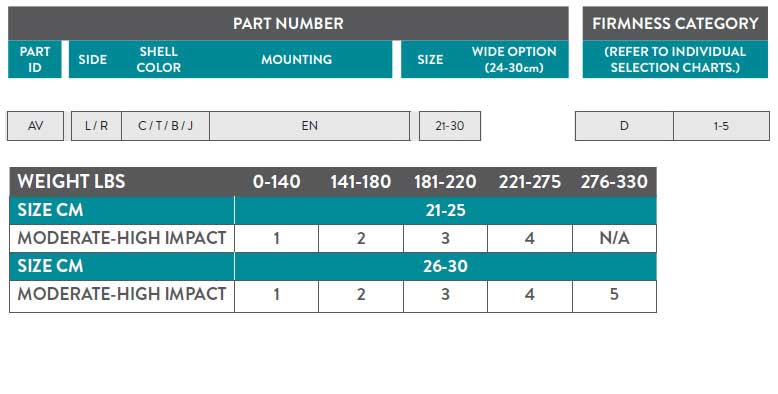

Build Part Number

Suggested L Codes : L5987 PDAC APPROVED

Choose Side

Left

Right

Left

Choose Color

Choose Size

Part Number

Copied to clipboard

Right

Same as Left Side

Choose Color

Choose Size

Part Number

Copied to clipboard

Shoe Size Conversion Chart

FOOT SIZE (cm)	U.S. Shoe Sizes
FOOT SIZE (cm)	Children	Men	Women
13	5.5-6.5
14	7-7.5
15	8-8.5
16	9-9.5
17	10-11
18	11.5-12.5
19	13-13.5
20	1-1.5
21	2-2.5	2-2.5	4-4.5
22		3-4	5-5.5
23		4.5-5	6-6.5
24		5.5-7	7-8
25		7.5-8	8.5-9.5
26		8.5-9	10-10.5
27		9.5-10.5	11-11.5
28		11-11.5	12
29		12-13
30		14
31		15

Specs & Downloads

Specifications

*26cm, with Removable foot shell and CPI sock.
** The listing of codes with these products should not be construed as a guarantee for coverage or payment. Ultimate responsibility for the coding of services/products rests with the individual practitioner.

	Impact Level	Moderate-High
	Mounting	Endo
	Weight Limit (lbs)	21-25 cm \| 275 lbs (125 kg) 26-30 cm \| 330 lbs (150 kg)
	Size Range	21-30 cm
	Build Height	16.4 cm (6.5 in)
	Foot Weight*	979 g
	Water Capability	Waterproof in Fresh Water
	Warranty	3 years
